Chromatography

Scion CompassCDS Chromatography Data System

Single Platform – Simply Powerful CompassCDS is SCION Instruments’ universal Chromatography Data System designed for instrument control, data acquisition, processing and reporting. With its unique capacity for customization, CompassCDS provides users with a powerful data analysis tool with comprehensive calibration and calculation options. Originating from the legacy Galaxie CDS, CompassCDS has evolved into the next generation CDS which easily integrates with LIMS, PCS/SCADA, ERP and other commonly used data management systems.

View details

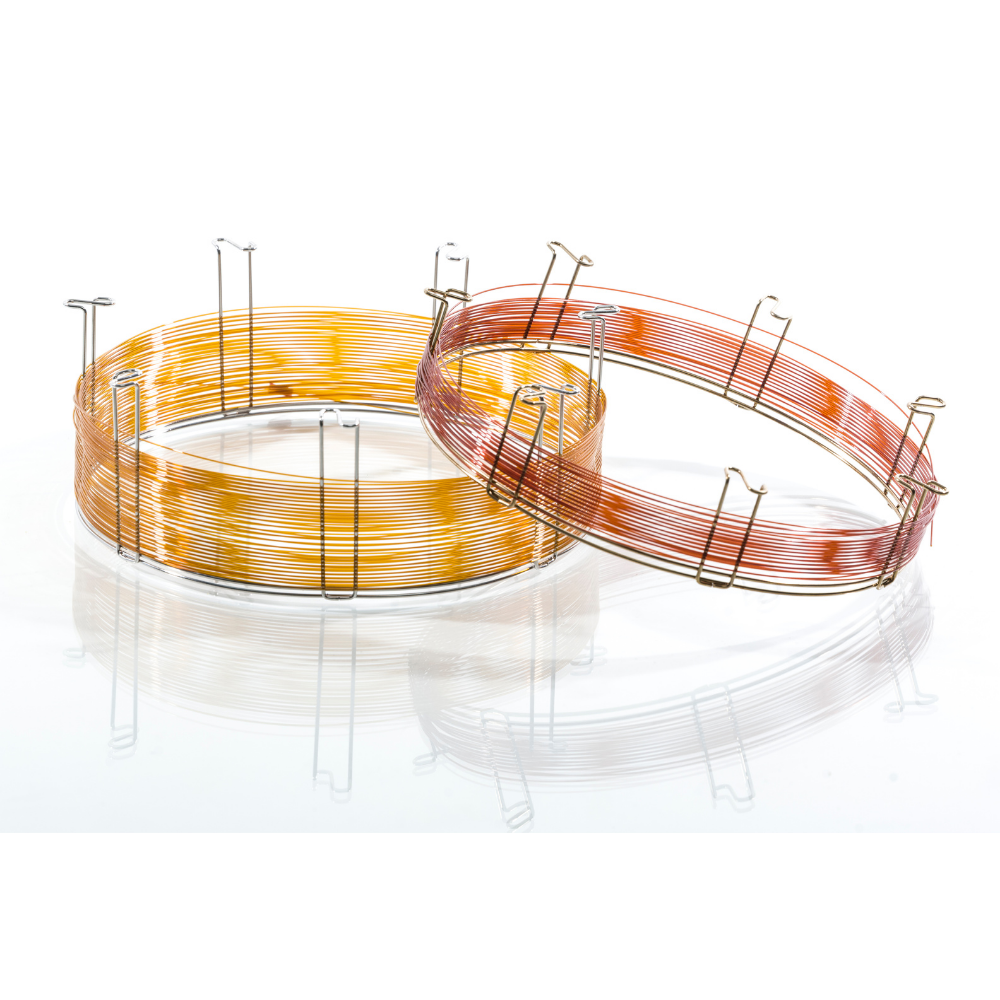

Scion GC Columns

SCION Instruments has a comprehensive range of chromatography columns. These columns are manufactured from the highest quality materials with the most detailed specifications to ensure reproducibility, low bleed and high inert material for outstanding chromatographic results. SCION’s chromatographic column range offers over twenty different types of stationary phases in various dimensions. Standard polarities like 1, 5, 35, 624 and WAX are available in our SCION-MS range, as well as 1, 5, and 1701 in our SCION-GC range. Plot Column SCION’s PLOT columns are the best choice for GC analysis or Gases and Volatiles. The range of PLOT columns on offer from SCION Instruments guarantees that you will have the best column for your application. SCION- PLOT columns are produced using the highest quality styrene/divinylbenzene base materials to ensure they deliver a superior mechanical and temperature stability – allowing for faster chromatography. The SCION-PLOT range incorporates BOND Q, PLOT Q, PLOT Q-HT and Al2O3 phases. Packed Column ◊ 5A & 13X Molsieve ◊ Hayesep DB, D, N, Q, P, R & T ◊ Inert Steel with various packing materials such as Porapak and OV-101 Custom packed columns are also available.
View details

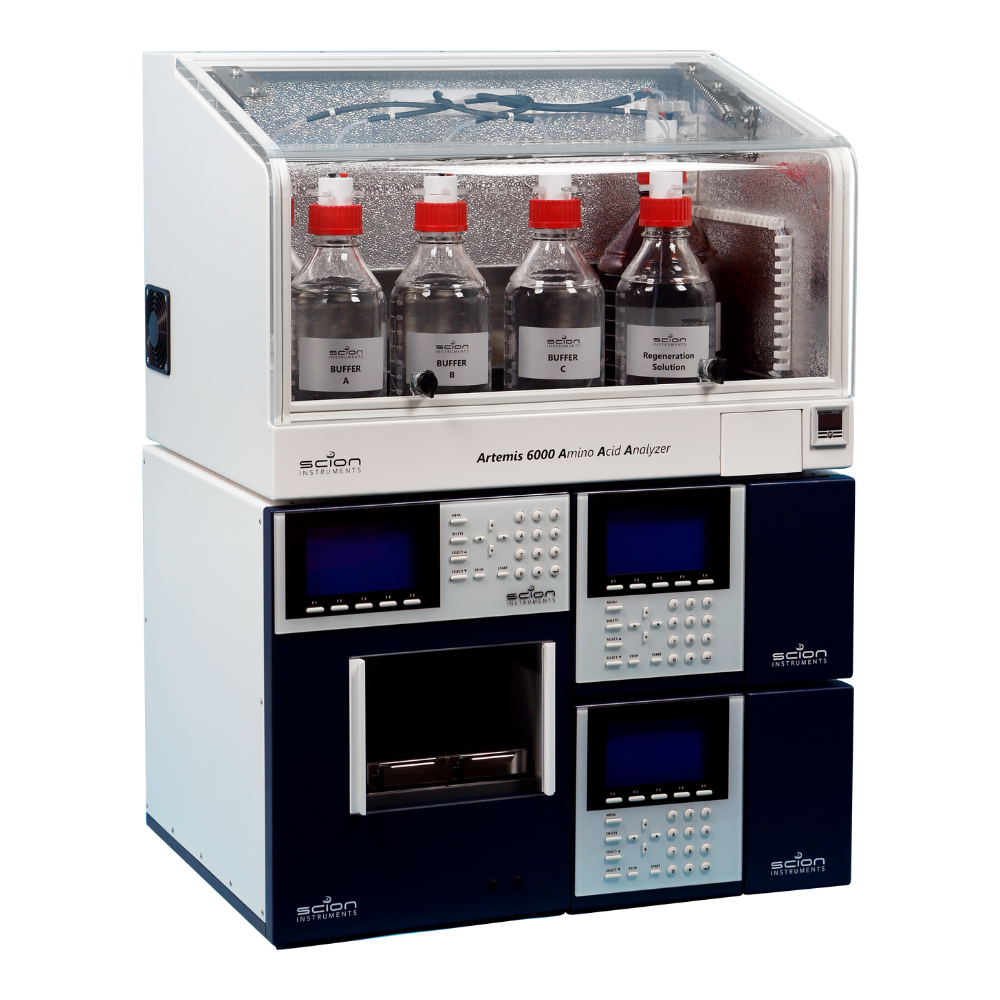

Amino Acid Analyzer (AAA)

SCION's well known analyzer solutions extended to amino acid analysis! Key Values Turn-key solution with reliable performance Configured package for various applications, e.g. protein hydrolysate, physiological fluid, etc. Pre-tuned and recommended conditions for "Inject and Run" Excellent sensitivity with a detection limit as low as 8 pMol (Asp 3p Mol), Great separation power: average peak resolution>1.5 All peak resolution >1.2 (hydrolysate AA) or >1.0 (free AA) Ease of use Fully controlled by 21 CFR part 11 compliance data system with multi-language support Powerful data processing and reporting function Visualized LCD with directly control and support method creation, editing and saving Modular design, ease of maintenance Productivity & Robust Fully automated analysis with protection, e.g. auto washing, leakage protection, etc. Rapid analysis: 30 - 50 min for hydrolysate sample, 70 - 180 min for physiological sample Outstanding repeatability in both retention time and peak area Real quaternary gradient to reduce the kind of buffer used Long-term stability with replaced buffer and consumables High efficient separation column and ammonia filter column with long lifetime Inert and non-metal materials for pipes contact with buffer solutions…
View details

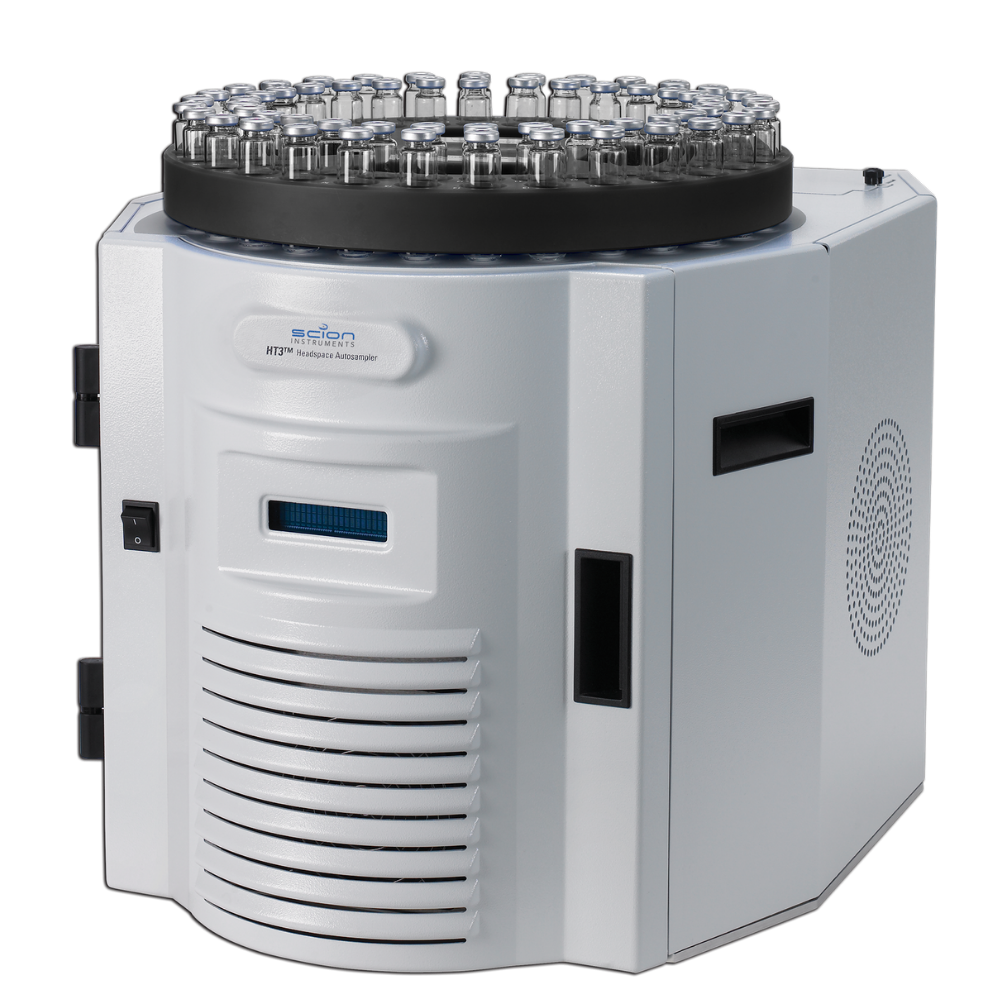

HT3 Static and Dynamic Headspace System

SCION Instruments announce the next generation Headspace instrument, the HT3 Static and Dynamic Headspace System. Static Heads and robust technique for the analysis of volatile compounds in almost any matrix. The popularity of the technique is due to Headspace analysis providing a clean, reliable result. Dramatic improvements in sensitivity are achieved with the new Dynamic Headspace option, while maintaining the ruggedness and reliability of a traditional Static Headspace instrument. Highlights ◊ Standard integrated 60-position autosampler with 10-position platen heater provides true walk away automation ◊ Increased sensitivity from 50 to 100 times with the Dynamic Headspace option (compound dependent) ◊ Removable sample path for trouble-free maintenance ◊ High temperature capability to 300°C expands range of applications ◊ Inert sample pathway including transfer line, sample needle and loop provide superior analytical results by eliminating adsorption and reducing carryover ◊ Automated Leak Check and Benchmark for quick troubleshooting ◊ Automated method development using Method Optimization Mode (M.O.M.) ◊ 21 CFR Compliance ◊ Built-in Mass Flow Controller ensures consistent flow and pressure for all samples regardless of external conditions Methods ◊ USP ◊ EPA Method 5021 ◊…
View details

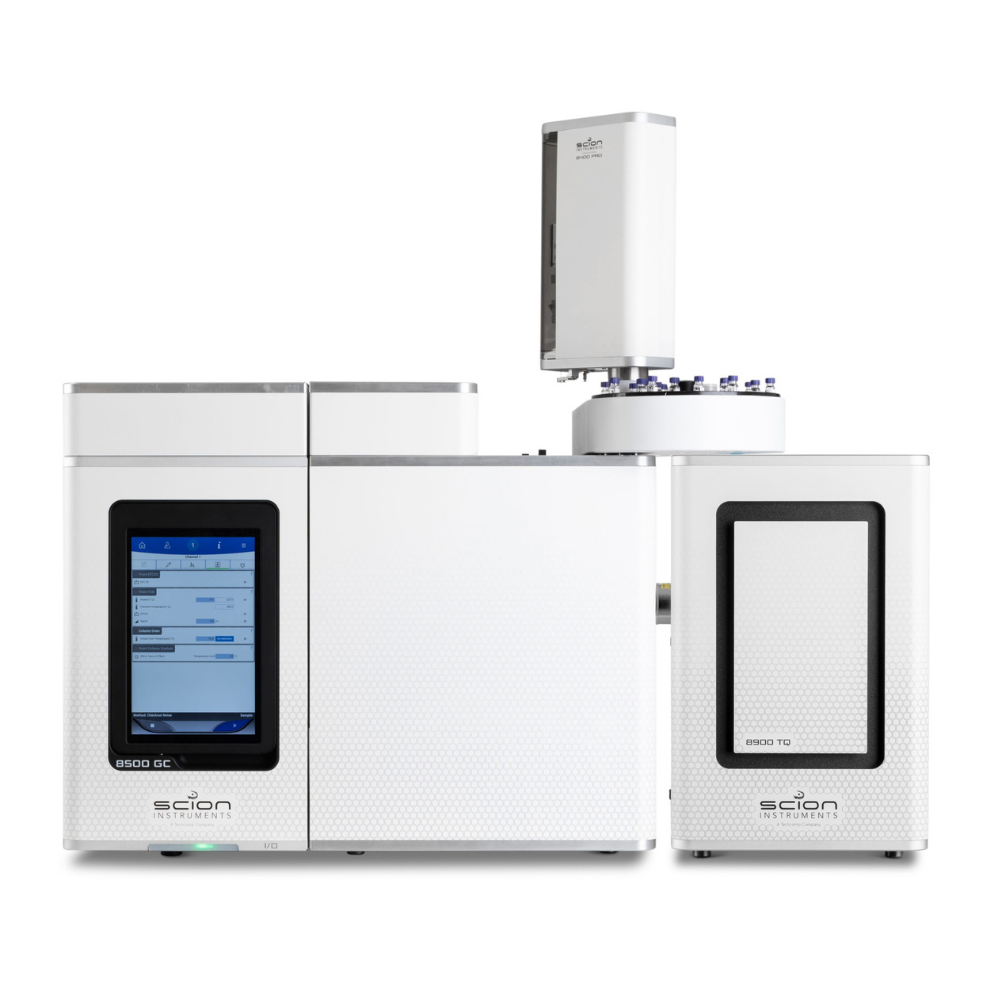

8900 TQ- Triple-quadrupole mass spectrometer

The SCION 8900 TQ-MS has a small footprint but does not compromise on quality. Offering superior sensitivity and robustness based on innovative ion optics, and fast and easy method development. Coupled to our outstanding GC instruments, the SCION 8900 TQ-MS system defines a new standard of usability for quantitative analysis. Available in two models, the SCION 8900 TQ-MS offers a flexible solution for any laboratory. Highlights ◊ Fastest GC-triple quadrupole on the market (30,000 Da/s, 1000 MRM/s) ◊ The most sensitive GC-TQMS available ◊ Small footprint without compromise on quality ◊ Active focusing Q0 ◊ Compound-based scanning software
View details

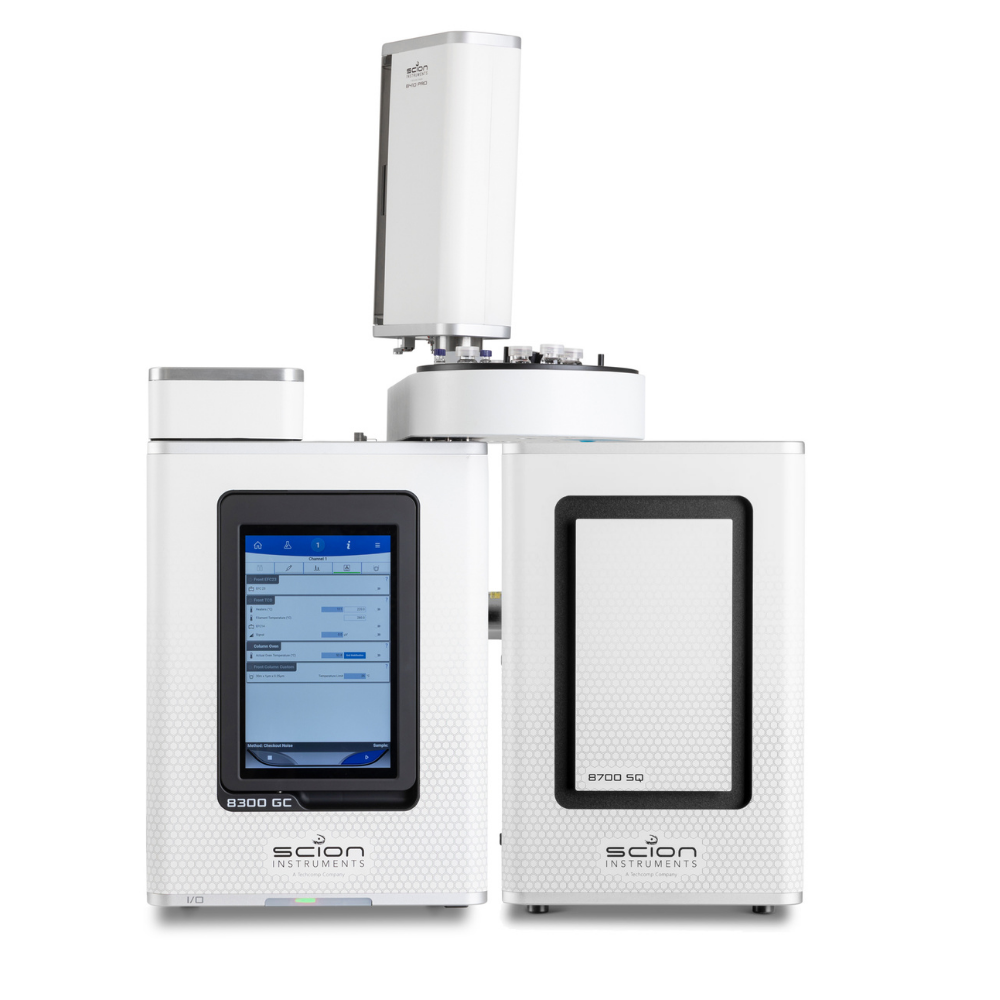

8700 SQ- Single quadrupole mass spectrometer

The SCION 8700 (SQ) GC-MS is designed for today’s fast paced analytical laboratory. Innovative design features such as a Lens-Free ion path, heated ion optics and an Extended Dynamic Range (EDR) detector enable the SCION SQ to deliver accurate quantification and identification on a routine basis, even in complex matrices. As ions pass through a mass spectrometer a significant portion is lost every time they encounter a lens. Due to its unique design the SCION SQ doesn’t have any lenses thus increasing the sensitivity of the instrument by reducing ion losses. Another major advantage of having no lenses the source is the only part to clean, so you can spend more time analysing samples and less time maintaining your instrument. The SQ is integrated with our SCION 8300 or 8500 GC as sole or as additional detector. Highlights ◊ Innovative lens-free ion path delivers simplifies tuning ◊ Off axis source and detector increase sensitivity ◊ Active focusing Q0 ◊ Dual filament source increases uptime ◊ Compound-based scanning software
View details

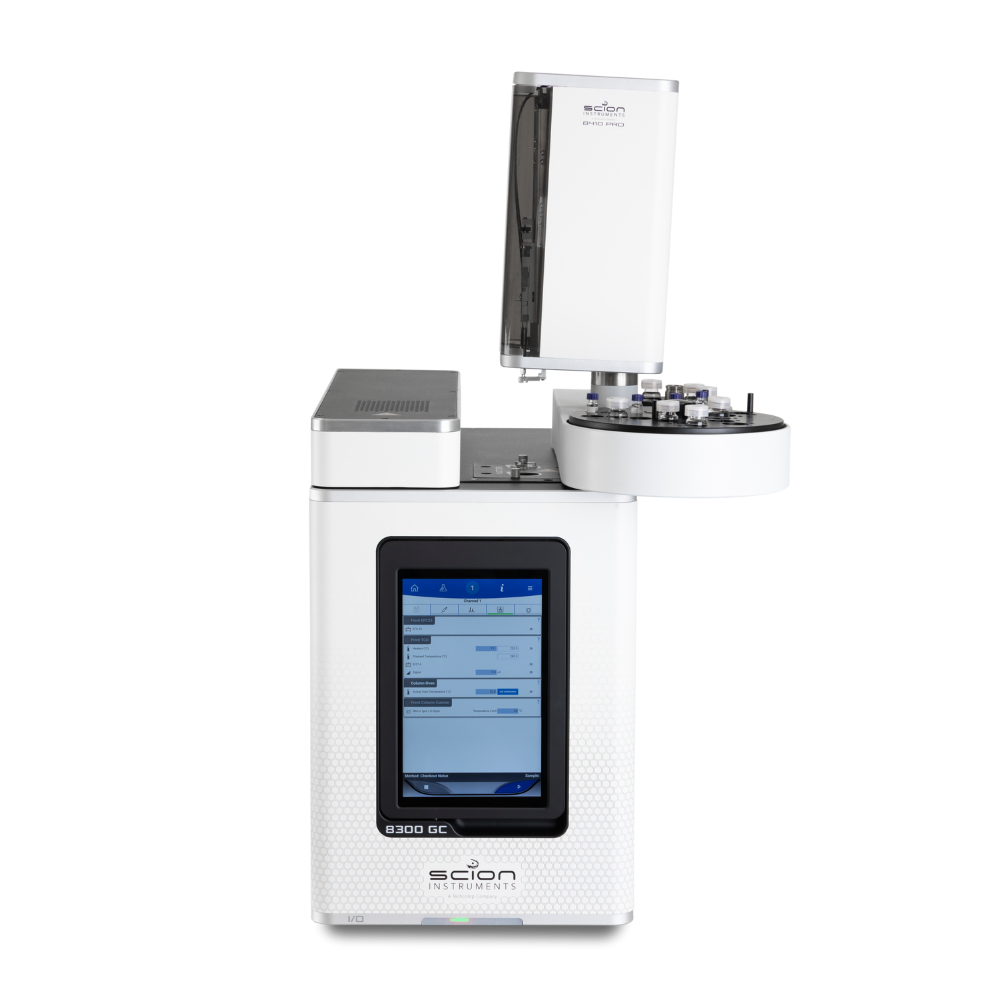

SCION 8300 GC

The ideal gas chromatograph for many applications that saves space without compromise on performance, productivity and functionality. Capacity for 2 injection ports, 1 GC detector plus a mass spectrometer makes the SCION 8300 GC a perfect match for your analyses. Highlights ◊ Compact footprint of only 32 cm (12.6″) wide ◊ Fast ramping oven (170°C/minute) ◊ Two channel architecture, with up to 2 injection ports and 2 detectors (including MS) ◊ 10″ High resolution full-colour touchscreen, 16 languages supporter ◊ Electronic flow control (EFC), 3 channels 0.001psi resolution Full automation capabilities through CompassCDS software and autosampler
View details

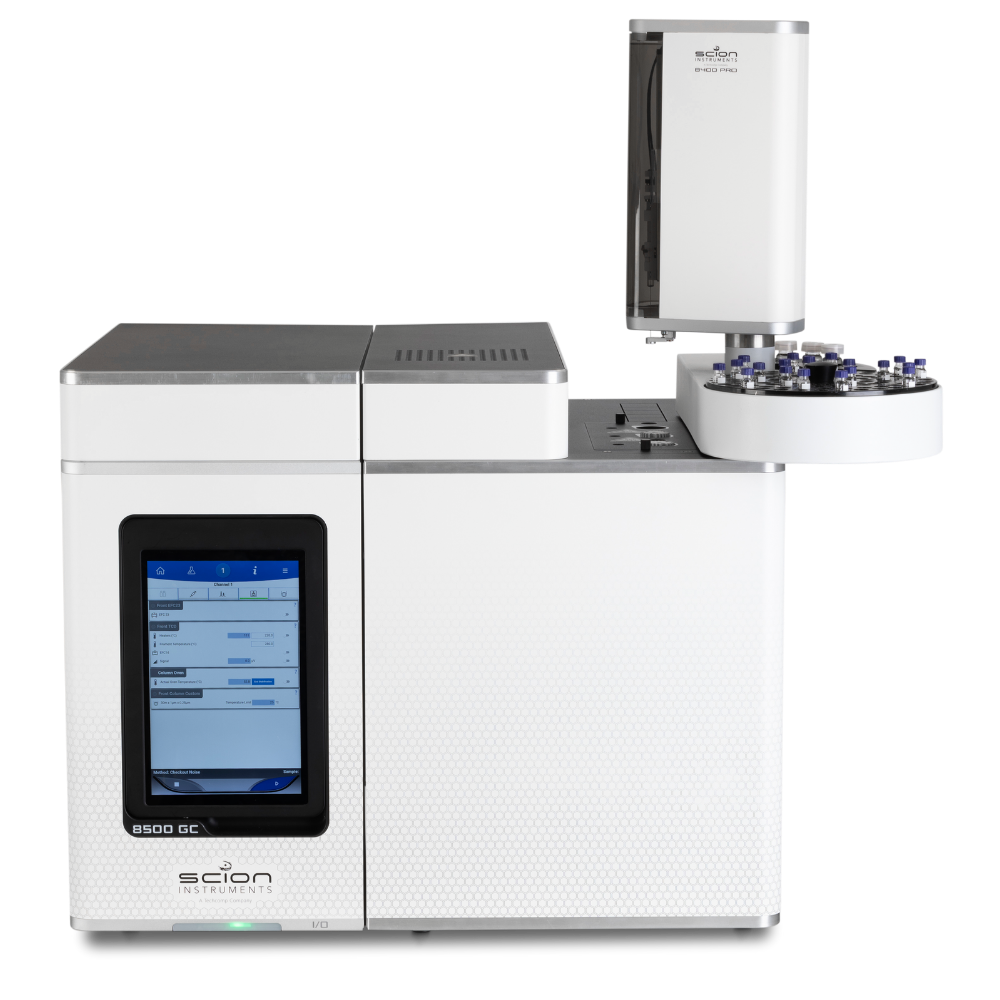

8500 Gas Chromatography

The SCION 8500 GC is versatile and offers flexibility. Supporting three injector and four detector positions (including the mass spectrometer) with full independent access, no other gas chromatograph system provides this capability. SCION 8500 GC is the platform for over 50 different configured analysers for petroleum, petrochemical and specialty gas applications. The perfect GC for any analytical challenge due to the wide array of options for configuration. Highlights ◊ Ultimate flexibility/configurability. ◊ Fast ramping over (150°C/minute) ◊ Three channel architecture, with up to 3 injection ports and 4 detectors (including MS) ◊ 10″ High resolution full-colour touchscreen, 16 languages supported ◊ Electronic Flow Control (EFC), up to 21 channels at 0.001psi resolution. ◊ Flexibility to add samplers, valves, valve oven, backflush and column switching capabilities, etc. Programmed and controlled and through CompassCDS
View details

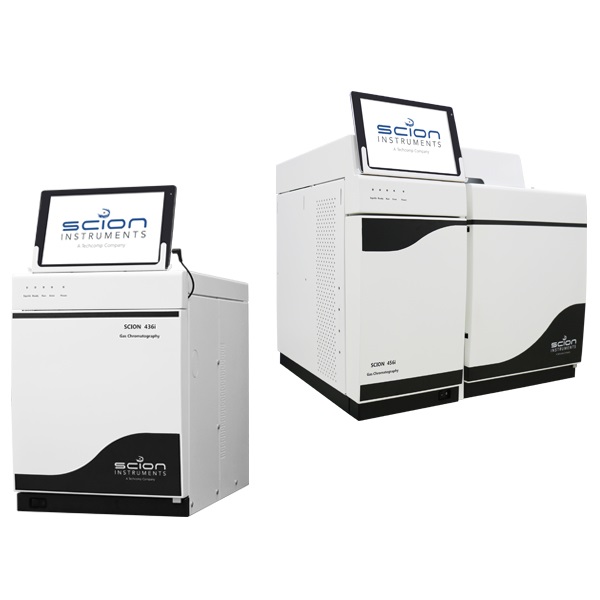

436i / 456i Gas Chromatograph

Scion 436i/456i Gas Chromatograph, inherits the advanced technology from Varian and Bruker, this new series meets the demand of intelligent and convenient instrumentation while ensuring high accuracy and repeatability. If you are looking for a gas chromatograph that offers exceptional performance and convenience, the Scion i series is worth to consider. Scion 436i/456i Gas Chromatograph Key Features: Enhanced convenience and intelligence in operation * The fixed touch panel has been replaced with a mobile tablet, allowing users to view instrument status and control parameters from anywhere in the laboratory via wireless connection. Moreover, the tablet integrates features such as operation manuals and maintenance videos, providing step-by-step instructions. Excellent flow control system * Full Electronic Flow Control (EFC) with a pressure control resolution of 0.001 psi ensures excellent analysis reproducibility. Flexibility to meet your application requirements * Various injector and detector types, with a detector data acquisition rate of up to 600Hz. * Customized solutions for integrated systems to support your analysis needs. * A wide range of sample introduction devices, including headspace sampler, liquid autosampler, thermal desorber (TD), gas autosampler, and multifunctional…
